Re-generation of facts fail when Java facts originating from same Schema exits

Re-generation of facts in a dictionary in Oracle Business Rules 11g is a simple step. One needs to just update the schema and reload the facts from the options available in the Fact tab of the dictionary. Unfortunately, I had been struggling for more than two weeks on this simple step and any change in schema, be it addition/deletion of an element or change in an element's type, the facts in the dictionary were so glued to the dictionary that, they refused to update !

I pondered over a lot of options and tried a lot of workarounds/suggestions:

• Re-created the schema and imported the schema again into Jdeveloper
• Cleaned the temporary files in windows which Jdeveloper creates, stores and uses, available under an user's profile
• Reloaded the facts in the dictionary in a different package (not the default). This updated the facts but all the existing reference in the dictionary had errors in them
• I even re-designed the schema based on one of my earlier posts

 All my efforts were futile and we had in the meanwhile a SR open with Oracle and we were getting some directions from them. Finally, Oracle found that we had been using a java fact created from the same schema  and imported via a jar, which was the issue!

Since the jaxb objects were the same, they was issue in refreshing the xml facts when a java fact belonging to same schema existed in the same dictionary. Below are the steps to be followed when a xml fact has to be refreshed (as in the case mentioned above):

1. Exit Jdeveloper
2. Remove the jar referenced to import the java fact (from hard disk)
3. Start Jdeveloper, remove the jar from project reference
4. Update the schema (preferably, open the schema and update contents instead of a replace of .xsd file)
5. Save all artifacts and run a clean up (not necessary, just a feel good factor) from Build>CleanAll
6. Reload facts from updated Schema and check for the same (in case not refreshed, close Jdeveloper and try cleaning workspace)
7. Update the jar with the update schema and reference it in the project properties

Good to move on now !!

Peace!

Cheers,
-AR

Using Dynamic Endpoint for a non-AIA based Composite in SOA 11g

The use of dynamic endpoint approach for a non-AIA based Composite is more or less the same, as it would have to been done for an AIA Composite. The stress on AIA in the implementation of dynamic endpoint is because AIA has AIAConfigurations.properties file, where usually this type information is stored. This information can be changed, loaded and reference at runtime, and so making the endpoint dynamic. The non-existence of AIA does not limit one from implementing this.

One just needs to make sure, AIA is replaced by a suitable component. By this statement, I mean one needs to make sure a mechanism is available to change, load and reference the endpoint at runtime. Oracle Fusion Middleware offers a lot of option for one to replace AIA. You can do any one of the below and yet use the dynamic endpoint feature without AIA:

• Store information in a file and use file adapter to read the file whenever required
• Store information in a database table and use a DB adapter to fetch the information
• Use BPEL Preference Properties to store the information (Preference Properties can be modified at runtime from EM Console)
• Store the information in Domain Value Map (DVM) and use functions to read the information from DVM

In all the cases, the information can be modified on the fly and each have their own set of limitations. I  saw DVM as the simplest, straightforward, hassle-free and readymade approach towards dynamic endpoint.

I created a DVM to store the information: Name of the Composite and Endpoint URI for the Composite. Teh DVM can be created within the Composite or deployed to MDS directly and referred from MDS. As to, how to deploy the DVM to MDS and referring from MDS, read this post.

Implementing the Dynamic Endpoint:

Creating Variables in BPEL:

1. Create two variables in the BPEL flow namely, TargetEndpointLocation (String) and EndpointReference (of Type EndpointReference from WS-Addressing)
2. When creating  the variable EndpointReference, import the XSD ws_addressing.xsd and choose the element type EndpointReference to create the variable
3. ws_addressing.xsd can be downloaded from here
4. This way, one need not copy-paste any code, or insert any namespace in the BPEL Process and its corresponding WSDL
5. After creating the variables, open the .bpel in source  mode and look for the namespace http://schemas.xmlsoap.org/ws/2003/03/addressing. Change the namespace prefix to wsa so that the namespace looks like below:

    xmlns:wsa="http://schemas.xmlsoap.org/ws/2003/03/addressing"

Implementing the dynamic endpoint:

1. Use the dvm:lookupValue function to look up the endpoint URI from the DVM. In the code snippet below, I have the DVM in MDS and I am looking up a DVM by name Endpoints to get the endpoint URI
2. Assign the URI to /wsa:EndpointReference/wsa:Address
3. Assign the /wsa:EndpointReference/wsa:Address to Partner link in the invoke that follows this logic
4. Insert the below code snippet just before the invoke node from the source view of the .bpel

Code Snippet:

<scope name="Scope_GetDynamicEndpoint">
    <sequence>
        <assign name="Assign_targetEndpointLocation">
            <copy>
                <from expression="dvm:lookupValue('oramds:/apps/Samples/Endpoints.dvm','ServiceName','SampleFlow','EndPoint','')"/>
                <to variable="TargetEndpointLocation"/>
            </copy>
        </assign>
        <assign name="AssignPartnerlinkEndpointReference">
            <copy>
                <from>
                    <wsa:EndpointReference xmlns:wsa="http://schemas.xmlsoap.org/ws/2003/03/addressing">
                        <wsa:Address/>
                    </wsa:EndpointReference>
                </from>
                <to variable="EndpointReference" query="/wsa:EndpointReference"/>
            </copy>
            <copy>
                <from variable="TargetEndpointLocation"/>
                <to variable="EndpointReference"
                query="/wsa:EndpointReference/wsa:Address"/>
            </copy>
            <copy>
                <from variable="EndpointReference"/>
                <to partnerLink="SampleFlowTarget"/>
            </copy>
        </assign>
    </sequence>
</scope>

    inputVariable="Invoke_SampleFlowTarget_InputVariable"
    ......


Peace!

Cheers,
- AR

Function to find age in years in Oracle Business Rules

I was part of a discussion recently - can age be found within business rules or can bpel do the math and get it for business rules. Business rules is not less incompetent and it does offer capability to mathematical calculations or so called numerical manipulations.

I had a date captured in a tag of type String and sent to business rules. I had to find the age from the date received in input. I have written a function in business rules that can get this done. Essentially the date is converted from string to date and then a difference in dates, will get you the result as an integer.

Duration.years between(OracleDate.from string(arg_1.IP1),RL.date.get current())

Peace!

Cheers,
-AR

Schema design - when Schema is to be used for dictionary

Quite recently, I was struggling with an issue that Tree Mode in Oracle Business Rules was not working. This was not definitely the first time I was working with Tree Mode and I had used it before successfully. In the project where I noticed the issue, the tree mode expression assigned by JDeveloper was weird. Usually its the dots and slashes that you notice in a tree mode, but here, it was dollars.

For instance, consider an order having many order lines. When you refer to orderlinenumber within the order line, the tree mode in my project with issues looked like $Order$OrderLine$OrderLineNumber. In an usual case, it would have been Order/OrderLine.OrderLineNumber.

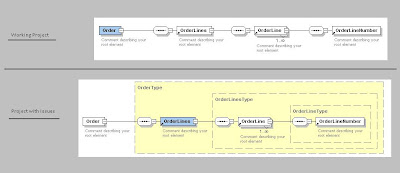

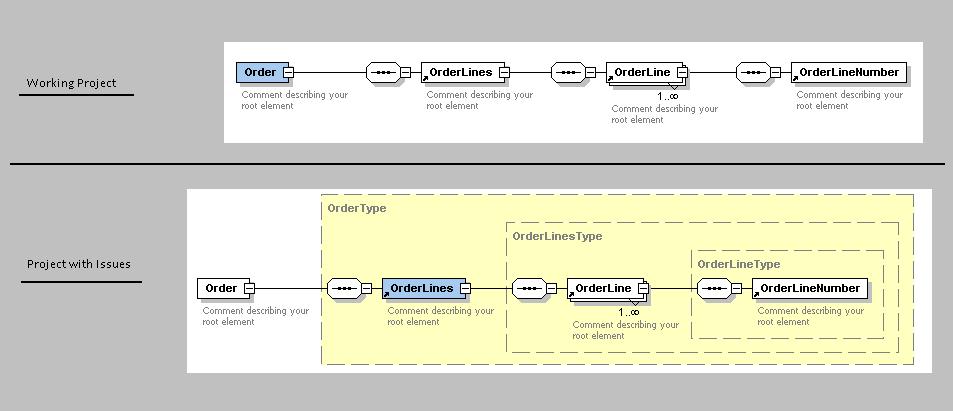

I then compared the project which worked fine with my current project. The issue was with the facts generated and hence the XSDs created in both the projects. The first project had a complex type defined for every element and that element had in its type the complex type definition. However, in the current project, there was no complex type defined and elements were defined individually and referenced within each other. This is still valid as per W3C standards. The XSD in both cases were as below:

The change in XSD also changed the way the facts were created. The facts in the first case were created based on the elements where as in the second case, it was the Complex types that was used by the Jaxb to create the facts !

Peace !

Cheers,
-AR
